Carbon Steel Wires

Low carbon, high carbon, galvanized and PC strand wires from China's leading supplier

Product Gallery

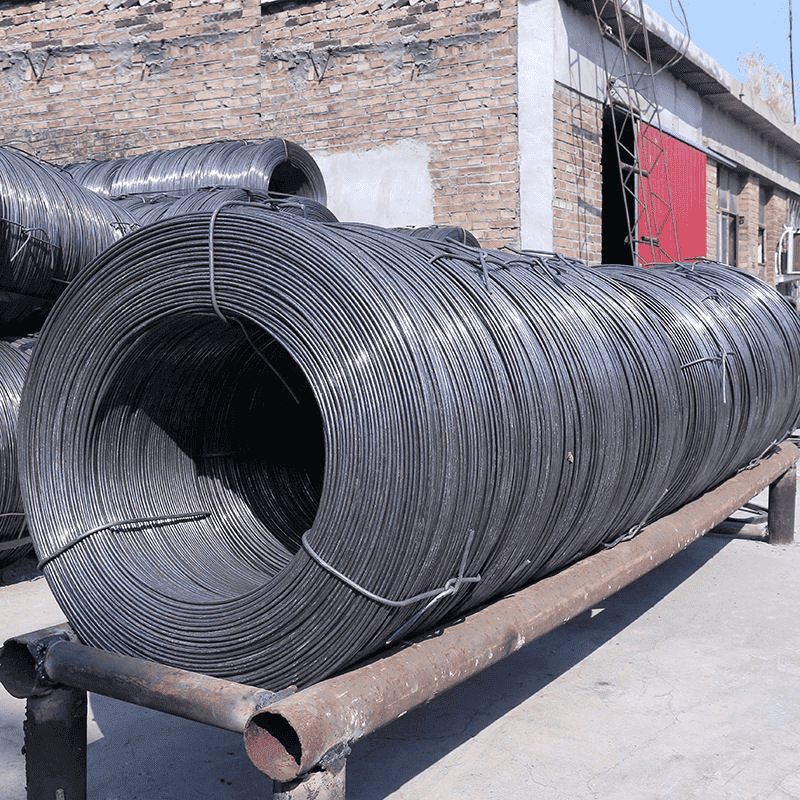

Carbon Steel Wire

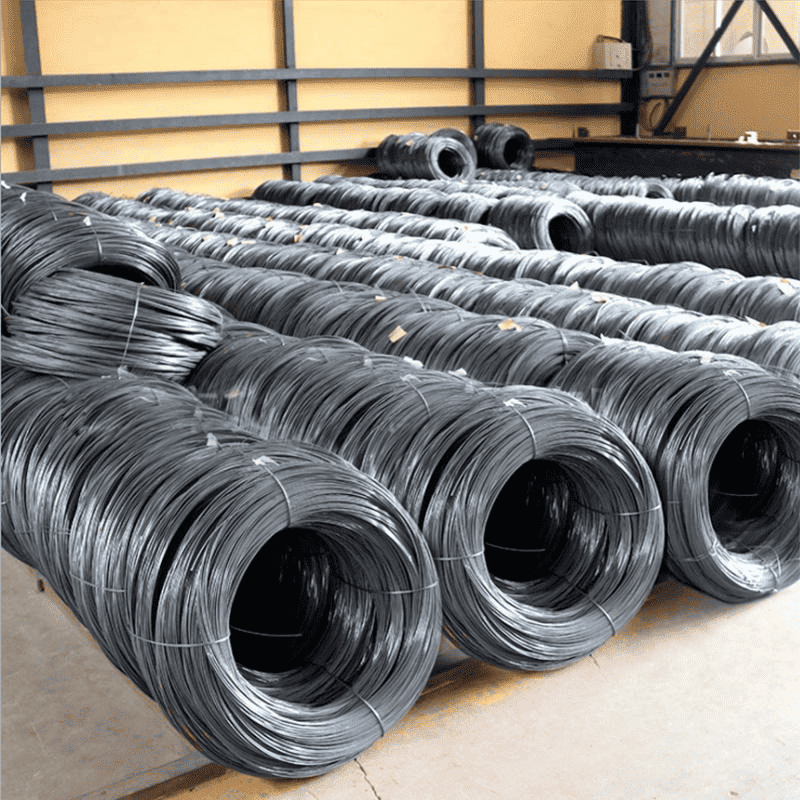

Carbon Steel Wire

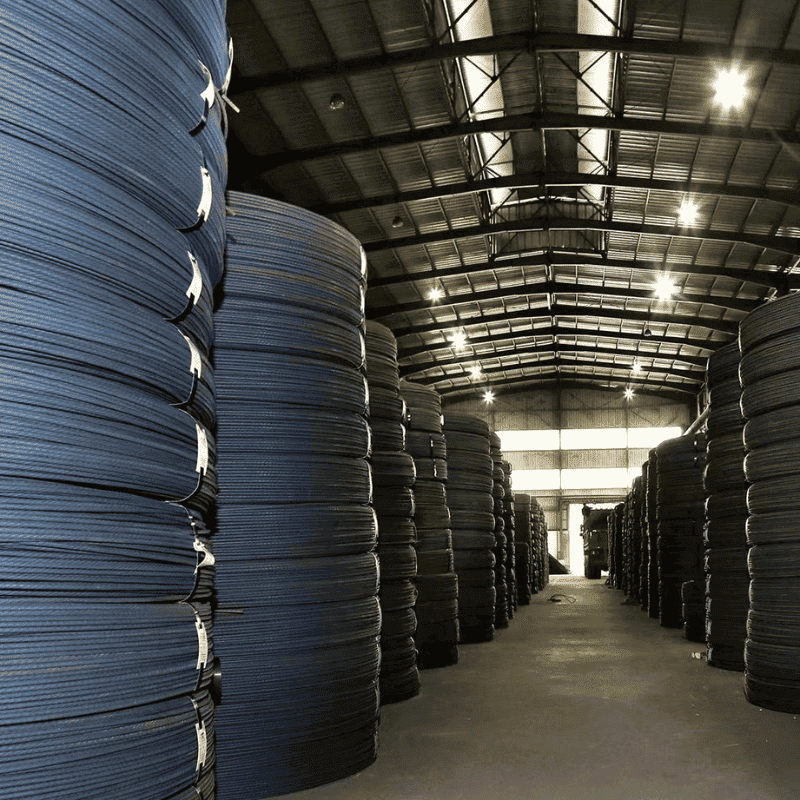

Carbon Steel Wire

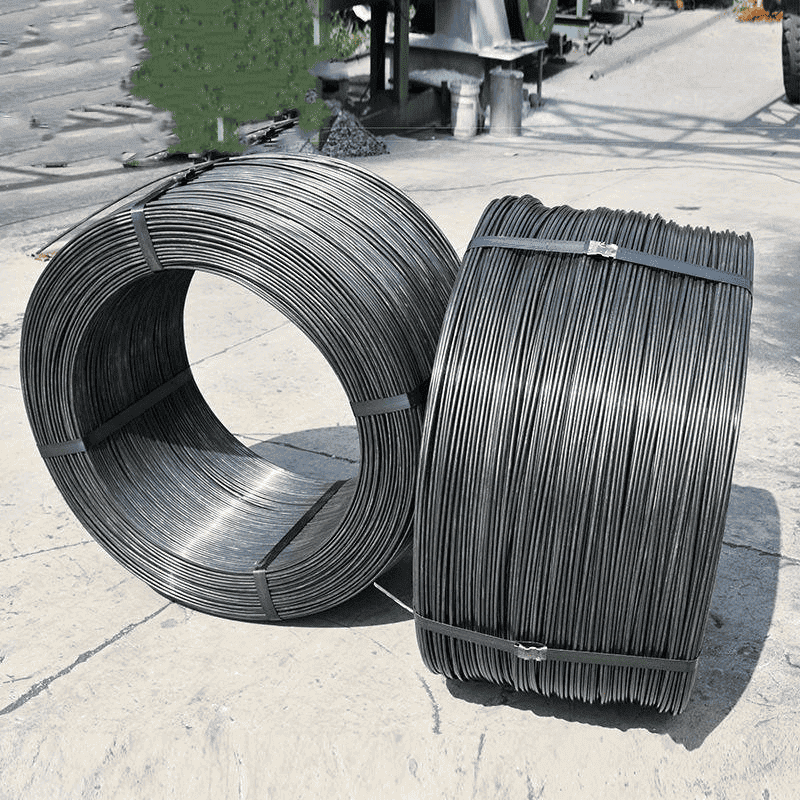

Carbon Steel Wire

Carbon Steel Wire

Wire Products

Comprehensive range of carbon steel wires for every industrial application

Low Carbon Wire

Low Carbon Wire

Diameter: 0.20 – 16 mm
Standard: ASTM A853 / A641

Learn More Inquire Now

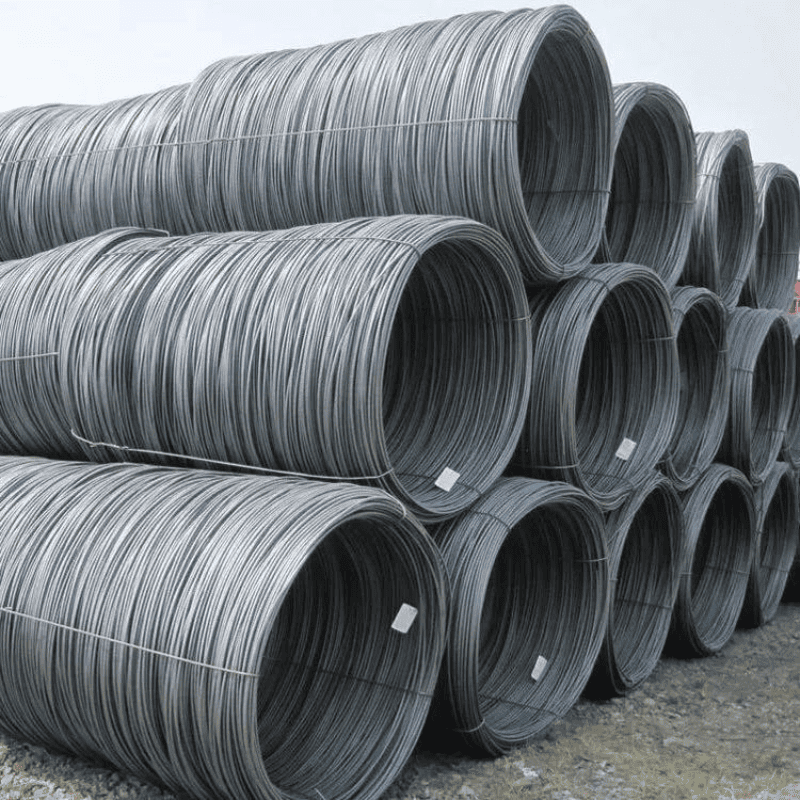

High Carbon Wire

High Carbon Wire

Diameter: 0.15 – 12 mm
Standard: ASTM A228 / A229

Learn More Inquire Now

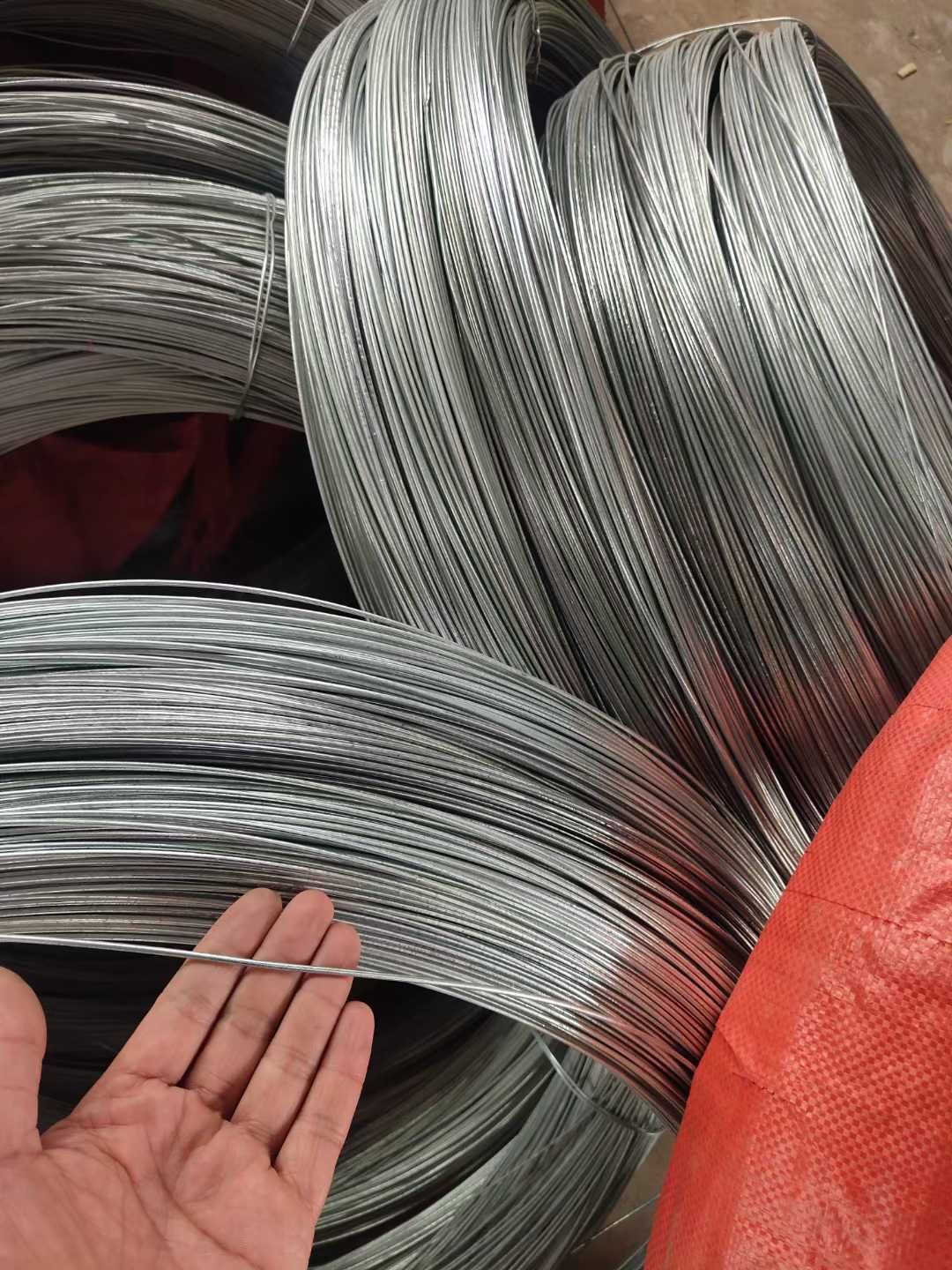

Galvanized Wire

Galvanized Wire

Diameter: 0.20 – 8 mm
Standard: ASTM A641 / A475

Learn More Inquire Now

Grades Available

Jiangsu Ranboyu Metal Products Co.,Ltd supplies carbon steel wires across all major structural and engineering grades

Structural Low & Med Carbon Alloy Steel High Carbon

Structural Steel ASTM / EN / JIS

C ≤0.26%Mn ≤1.35% Yield ≥250 MPaTensile 400-550 MPa

C ≤0.23%Mn ≤1.35% Yield ≥345 MPaTensile ≥450 MPa

C ≤0.20%Mn ≤1.40% Yield ≥245 MPaTensile 400-510 MPa

C ≤0.20%Mn ≤1.40% Yield ≥235 MPaTensile 370-500 MPa

C ≤0.20%Mn ≤1.70% Yield ≥345 MPaTensile 470-630 MPa

C ≤0.17%Mn ≤1.40% Yield ≥235 MPaTensile 360-510 MPa

C ≤0.21%Mn ≤1.50% Yield ≥275 MPaTensile 410-560 MPa

C ≤0.24%Mn ≤1.60% Yield ≥355 MPaTensile 470-630 MPa

Low & Medium Carbon Steel AISI / SAE / EN

C 0.15–0.20%Mn 0.60–0.90% Yield ≥370 MPaTensile 440-790 MPa

C 0.18–0.23%Mn 0.30–0.60% Yield ≥350 MPaTensile 420-760 MPa

C ≤0.31%Mn 0.85–1.20% Yield ≥260 MPaTensile 485-620 MPa

C 0.43–0.50%Mn 0.60–0.90% Yield ≥415 MPaTensile 630-780 MPa

C 0.42–0.50%Mn 0.50–0.80% Yield ≥380 MPaTensile 630-780 MPa

C 0.42–0.48%Mn 0.60–0.90% Yield ≥490 MPaTensile ≥690 MPa

C 0.35–0.45%Mn 0.60–1.00% Yield ≥400 MPaTensile 550-700 MPa

C 0.50–0.60%Mn 0.50–0.80% Yield ≥480 MPaTensile 700-850 MPa

Alloy Steel Cr-Mo / Ni-Cr

C 0.38–0.43%Cr 0.80–1.10% Mn 0.75–1.00%Mo 0.15–0.25%

C 0.28–0.33%Cr 0.80–1.10% Mn 0.40–0.60%Mo 0.15–0.25%

C 0.38–0.43%Ni 1.65–2.00% Cr 0.70–0.90%Mo 0.20–0.30%

C 0.18–0.23%Ni 0.40–0.70% Cr 0.40–0.60%Mo 0.15–0.25%

C 0.38–0.45%Cr 0.90–1.20% Mn 0.60–0.90%Mo 0.15–0.30%

C 0.38–0.43%Ni 1.30–1.80% Cr 1.00–1.40%Mo 0.20–0.35%

C 0.38–0.45%Cr 0.90–1.20% Mn 0.60–0.90%Mo 0.15–0.30%

C 0.30–0.38%Ni 1.30–1.70% Cr 1.30–1.70%Mo 0.15–0.30%

High Carbon Steel 0.52–1.03% C

C 0.90–1.03%Mn 0.30–0.50% Yield ≥520 MPaTensile 1120-1320 MPa

C 0.65–0.75%Mn 0.60–0.90% Yield ≥480 MPaTensile 980-1180 MPa

C 0.77–0.85%Mn 0.50–0.80% Yield ≥450 MPaTensile 900-1100 MPa

C 0.80–0.90%Mn ≤0.50% Yield ≥500 MPaTensile 1000-1200 MPa

C 0.70–0.85%Mn 0.55–0.75% Yield ≥460 MPaTensile 950-1150 MPa

C 0.52–0.60%Mn 0.60–0.90% Yield ≥420 MPaTensile 700-850 MPa
