Carbon Steel Plates & Sheets

Low, medium and high carbon steel plates from China's leading supplier

Product Gallery

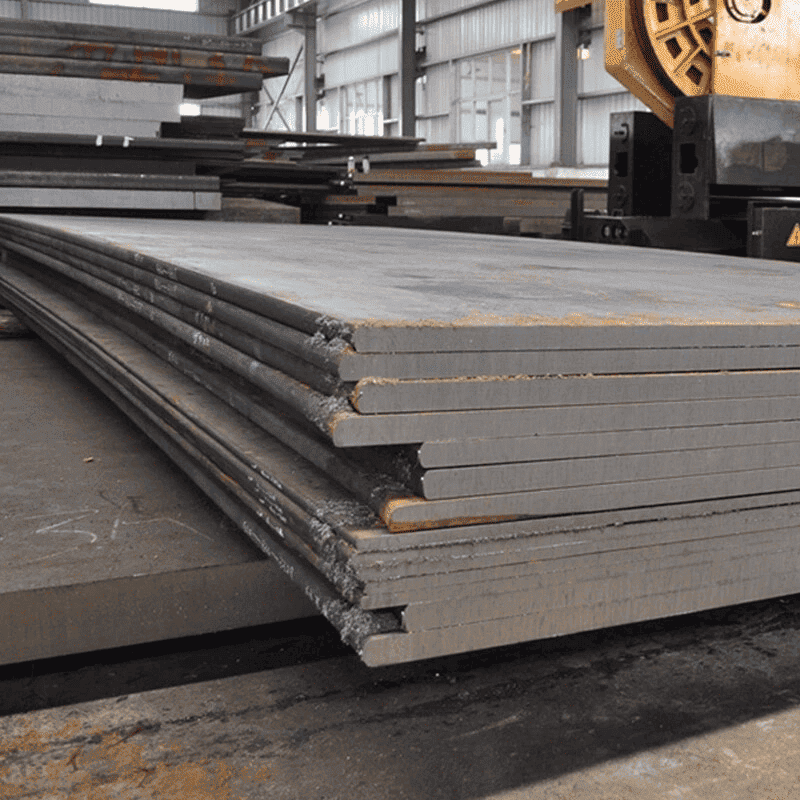

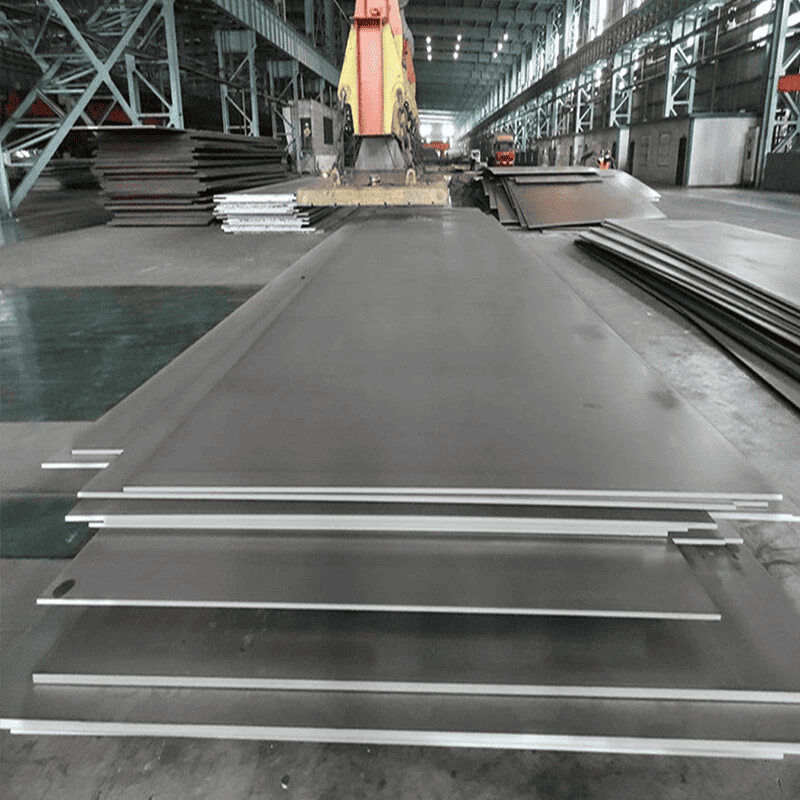

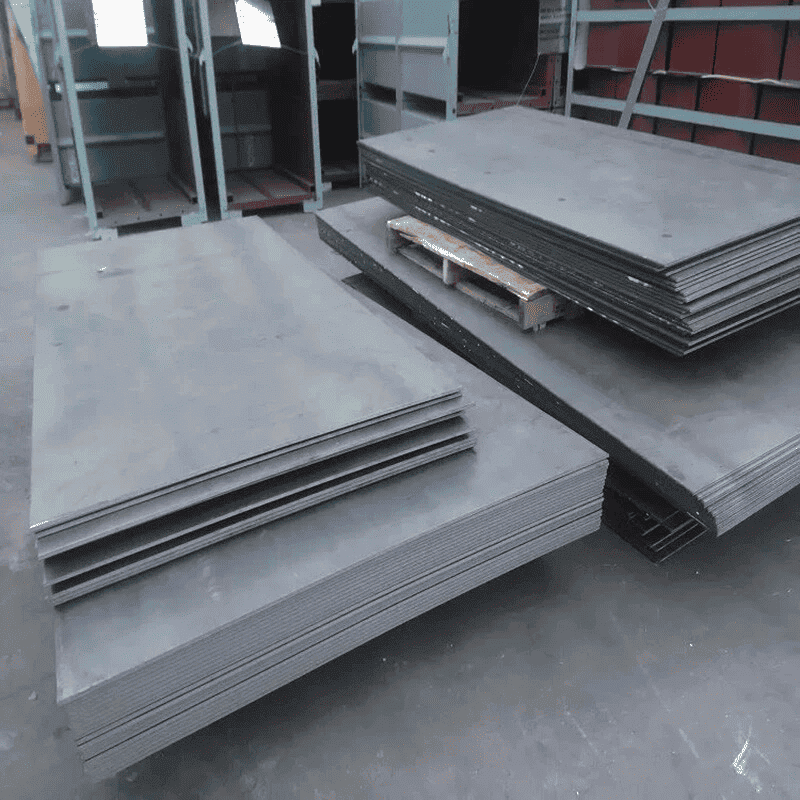

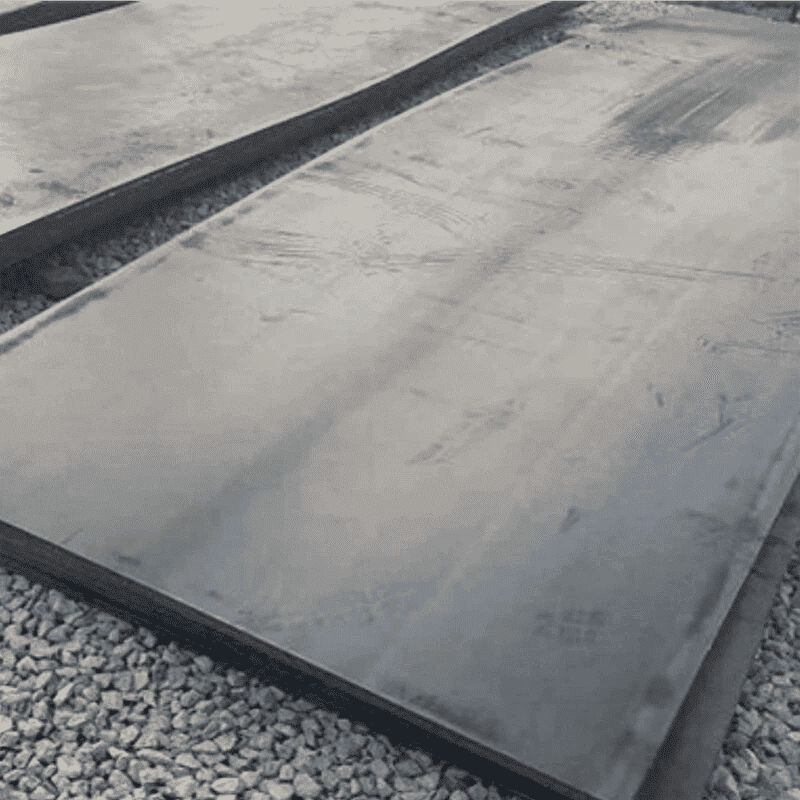

Carbon Steel Plate

Carbon Steel Plate

Carbon Steel Plate

Carbon Steel Plate

Carbon Steel Plate

Carbon Steel Plate

Plate & Sheet Products

Comprehensive range of carbon steel plates and sheets for every industrial application

Carbon Steel Plate

Carbon Steel Plate

Thick: 0.3 – 600 mm
Width: ≤ 4000 mm
Standard: ASTM A36 / A572 / A516

Learn More Inquire Now

Low Carbon Steel Sheet

Low Carbon Steel Sheet

Thick: 0.1 – 3 mm
Width: ≤ 2000 mm
Standard: ASTM A1008 / A1011

Learn More Inquire Now

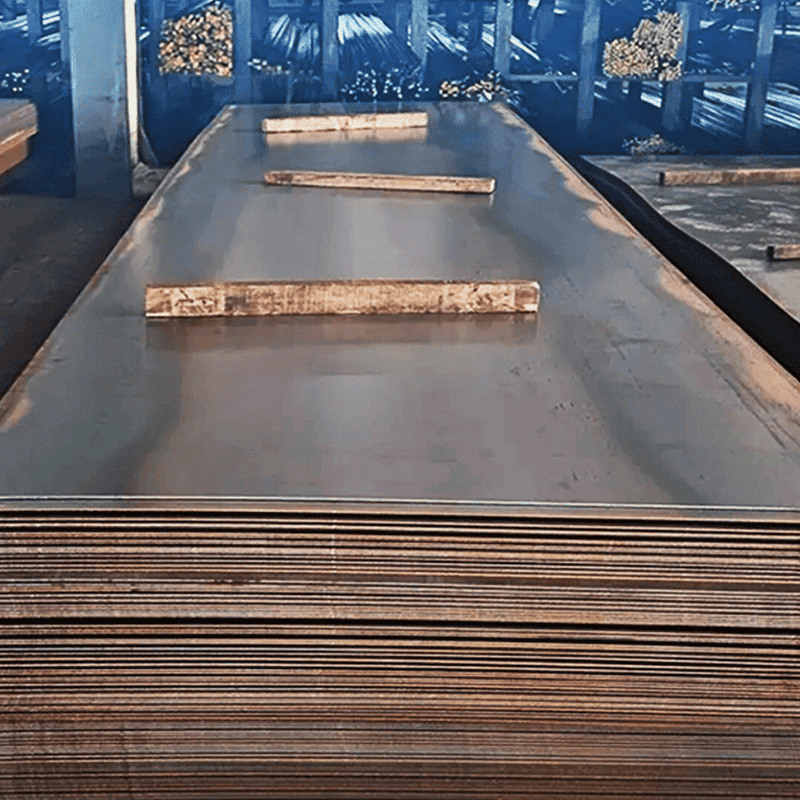

Medium Carbon Steel Plate

Medium Carbon Steel Plate

Thick: 3 – 300 mm
Standard: ASTM A572 / A283

Learn More Inquire Now

High Carbon Steel Plate

High Carbon Steel Plate

Thick: 0.5 – 200 mm
Standard: ASTM A830

Learn More Inquire Now

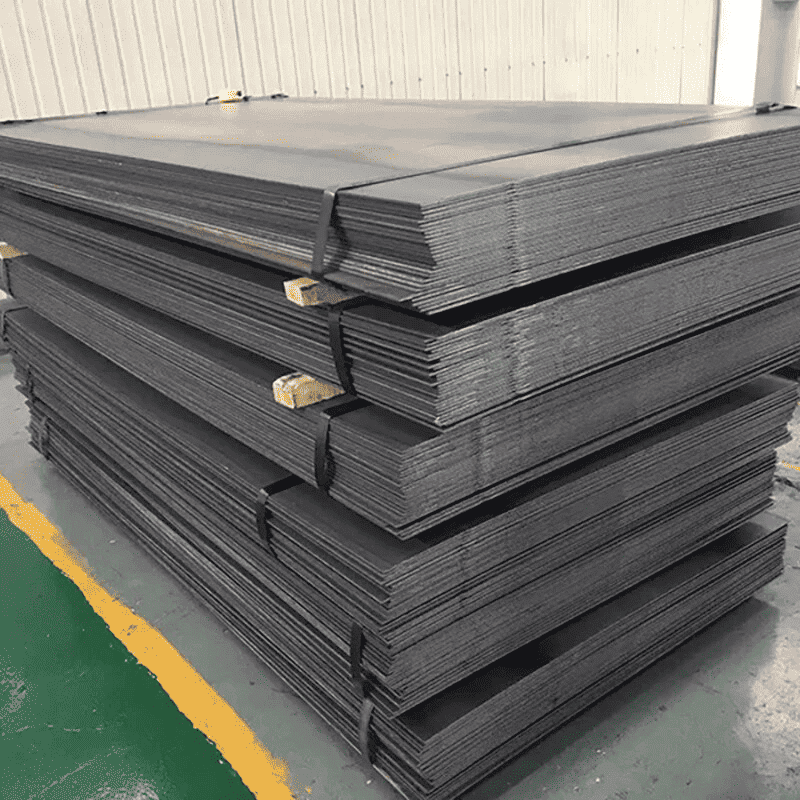

Boiler & Pressure Vessel Plate

Boiler & Pressure Vessel Plate

Standard: ASTM A516 / A537

Learn More Inquire Now

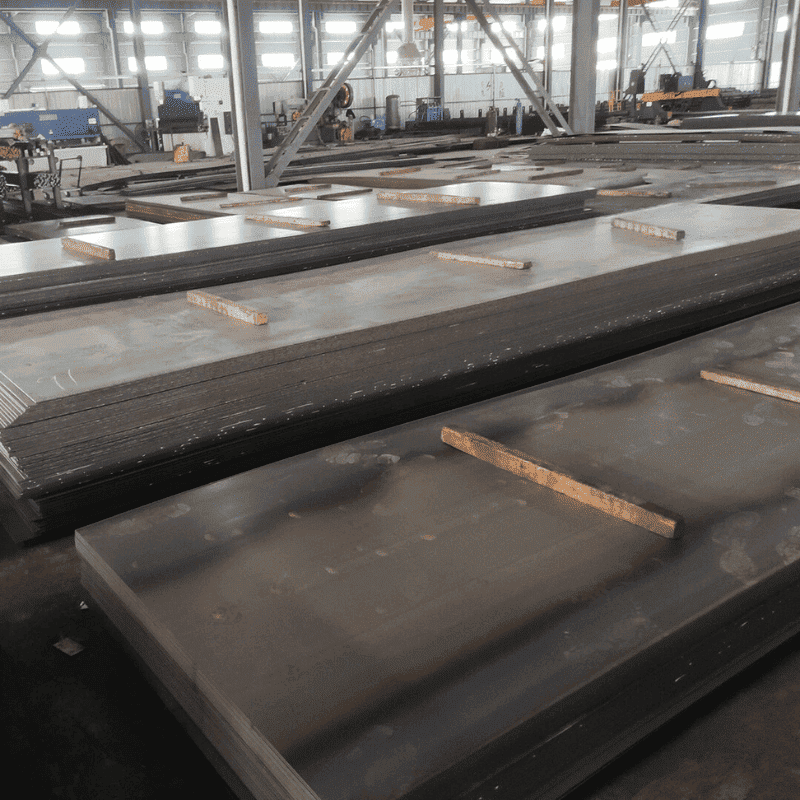

Wear-Resistant Steel Plate

Wear-Resistant Steel Plate

Hardness: 400 / 450 / 500 HBW
Thickness: 3 – 120 mm
Standard: NM400 / NM450 / NM500 / Hardox

Learn More Inquire Now

Grades Available

Jiangsu Ranboyu Metal Products Co.,Ltd supplies carbon steel plates across all major structural and engineering grades

Structural Low & Med Carbon Alloy Steel High Carbon

Structural Steel ASTM / EN / JIS

C ≤0.26%Mn ≤1.35% Yield ≥250 MPaTensile 400-550 MPa

C ≤0.23%Mn ≤1.35% Yield ≥345 MPaTensile ≥450 MPa

C ≤0.20%Mn ≤1.40% Yield ≥245 MPaTensile 400-510 MPa

C ≤0.20%Mn ≤1.40% Yield ≥235 MPaTensile 370-500 MPa

C ≤0.20%Mn ≤1.70% Yield ≥345 MPaTensile 470-630 MPa

C ≤0.17%Mn ≤1.40% Yield ≥235 MPaTensile 360-510 MPa

C ≤0.21%Mn ≤1.50% Yield ≥275 MPaTensile 410-560 MPa

C ≤0.24%Mn ≤1.60% Yield ≥355 MPaTensile 470-630 MPa

Low & Medium Carbon Steel AISI / SAE / EN

C 0.15–0.20%Mn 0.60–0.90% Yield ≥370 MPaTensile 440-790 MPa

C 0.18–0.23%Mn 0.30–0.60% Yield ≥350 MPaTensile 420-760 MPa

C ≤0.31%Mn 0.85–1.20% Yield ≥260 MPaTensile 485-620 MPa

C 0.43–0.50%Mn 0.60–0.90% Yield ≥415 MPaTensile 630-780 MPa

C 0.42–0.50%Mn 0.50–0.80% Yield ≥380 MPaTensile 630-780 MPa

C 0.42–0.48%Mn 0.60–0.90% Yield ≥490 MPaTensile ≥690 MPa

C 0.35–0.45%Mn 0.60–1.00% Yield ≥400 MPaTensile 550-700 MPa

C 0.50–0.60%Mn 0.50–0.80% Yield ≥480 MPaTensile 700-850 MPa

Alloy Steel Cr-Mo / Ni-Cr

C 0.38–0.43%Cr 0.80–1.10% Mn 0.75–1.00%Mo 0.15–0.25%

C 0.28–0.33%Cr 0.80–1.10% Mn 0.40–0.60%Mo 0.15–0.25%

C 0.38–0.43%Ni 1.65–2.00% Cr 0.70–0.90%Mo 0.20–0.30%

C 0.18–0.23%Ni 0.40–0.70% Cr 0.40–0.60%Mo 0.15–0.25%

C 0.38–0.45%Cr 0.90–1.20% Mn 0.60–0.90%Mo 0.15–0.30%

C 0.38–0.43%Ni 1.30–1.80% Cr 1.00–1.40%Mo 0.20–0.35%

C 0.38–0.45%Cr 0.90–1.20% Mn 0.60–0.90%Mo 0.15–0.30%

C 0.30–0.38%Ni 1.30–1.70% Cr 1.30–1.70%Mo 0.15–0.30%

High Carbon Steel 0.52–1.03% C

C 0.90–1.03%Mn 0.30–0.50% Yield ≥520 MPaTensile 1120-1320 MPa

C 0.65–0.75%Mn 0.60–0.90% Yield ≥480 MPaTensile 980-1180 MPa

C 0.77–0.85%Mn 0.50–0.80% Yield ≥450 MPaTensile 900-1100 MPa

C 0.80–0.90%Mn ≤0.50% Yield ≥500 MPaTensile 1000-1200 MPa

C 0.70–0.85%Mn 0.55–0.75% Yield ≥460 MPaTensile 950-1150 MPa

C 0.52–0.60%Mn 0.60–0.90% Yield ≥420 MPaTensile 700-850 MPa
