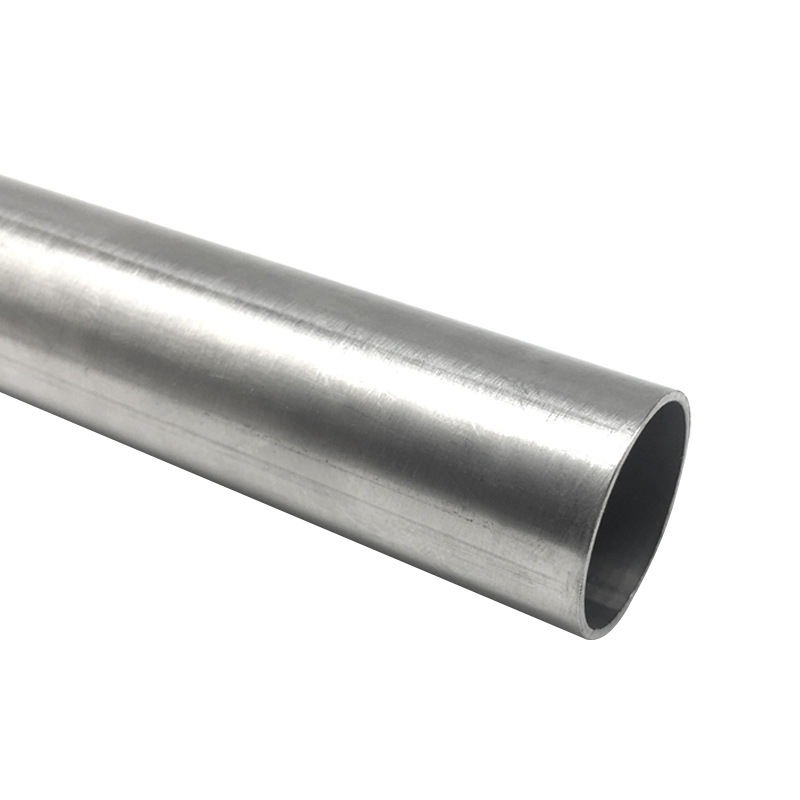

904L Stainless Steel Pipe/Tube
904L stainless steel is a stainless steel material with high corrosion resistance, high strength and good mechanical properties. Due to its excellent tolerance and reliability to harsh environments, 904L stainless steel is commonly used in petroleum, chemical industry, and marine engineering.
Description
904L Stainless Steel Pipe Description
904L stainless steel is a high-strength material. This high-strength characteristic allows 904L stainless steel plate to maintain stable performance when subjected to high loads and stresses, and is not prone to deformation and fracture. It also has good toughness and can maintain good toughness in low temperature environments. More importantly, 904L stainless steel also has good wear resistance and can maintain good durability and stability in friction and wear environments. This characteristic allows 904L stainless steel to maintain a long service life under various mechanical movements and friction situations. Lastly, 904L stainless steel plate has excellent corrosion resistance and can maintain stable performance in various corrosive environments.
Product Parameters
| Product Name | 904L Stainless Steel Pipe | |
| Type | Steel Pipe | |
| Outer diameter | Round Tube | 4mm-200mm |
| Square Tube | 10*10mm-100*100mm | |
| Rectangular Tube | 10*20mm-50*100mm | |
| Wall Thickness | 0.6mm-6.0mm | |
| Length | 1-6 meters, Length can be customized | |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
| Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc. | |
| Scope of Application | Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc. | |
| Certificate | ISO, SGS, BV, etc. | |
| Production Technology | Hot Rolling, Cold Rolling | |
| Edge Processing | Edging, Trimming | |
Chemical Composition
| C | Si | Mn | Cr | Ni | Mo | S | P |
| ≤ 0.02 | ≤ 1.0 | ≤ 2.0 | 19.0～23.0 | 23.0～28.0 | 4.0～5.0 | ≤ 0.035 | ≤ 0.045 |
Mechanical Properties
| Tensile Strength Kb (MPa) | Yield Strength σ0.2 (MPa) | Elongation D5 (%) | Hardness |
| ≥490 | ≥220 | ≥35 | ≤ 90HRB |
Physical Performance
| Density(g/cm³) | Modulus of Elasticity(Gpa) | Coefficient of Thermal Expansion(10-6/°C) | Coefficient of Thermal Conductivity(W/m*K) | Resistivity(ΜΩ. cm) |
| 8.0 | 195 | 15.5 | 12.0 | 94 |
