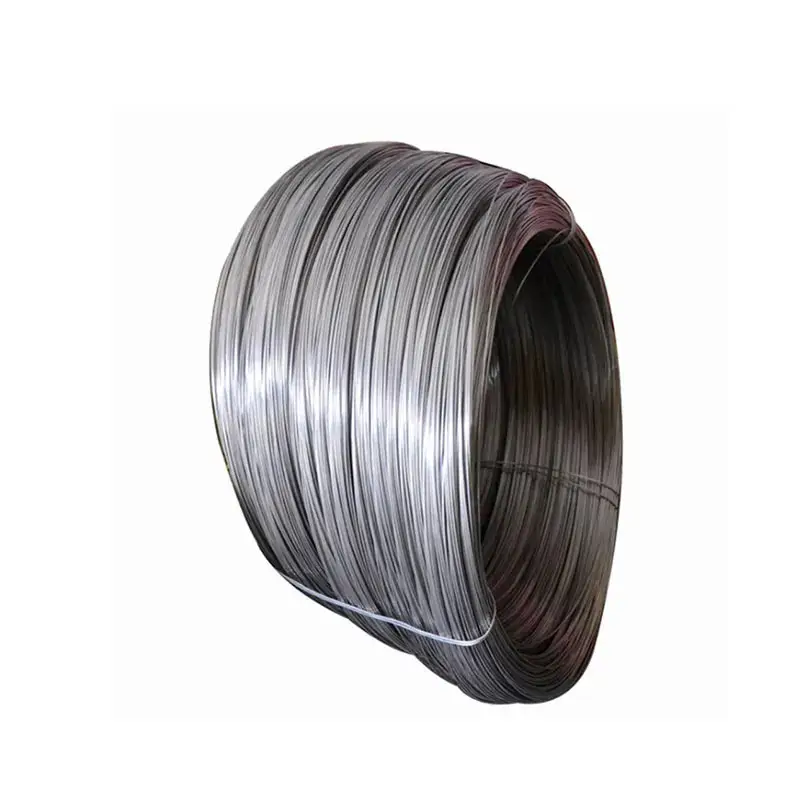

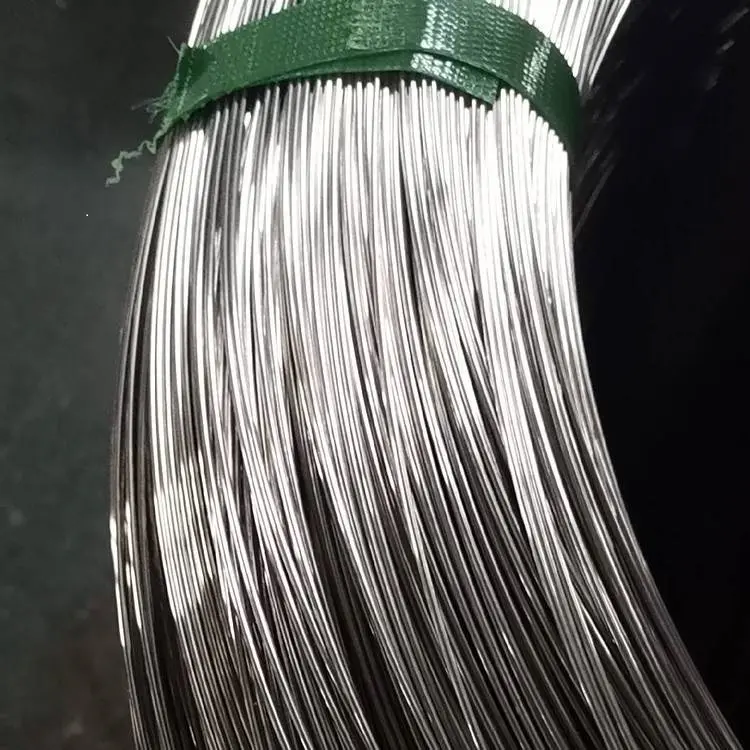

430 Stainless Steel Wire
430 stainless steel wire is a ferritic, low carbon stainless steel known for its good corrosion resistance and formability, along with magnetic properties. It contains high chromium, providing decent resistance to atmospheric corrosion and moderate resistance against many acids and bases. Its magnetic quality and moderate thermal expansion make it suitable for various applications. 430 wire is often used in consumer appliances, automotive trim, interior architecture, and in components requiring magnetic properties. Additionally, it’s used in certain chemical applications due to its resistance to nitric acid and organic acids. This grade is popular in applications where moderate corrosion resistance and formability are required, along with aesthetic appeal.
Description
| Name | Stainless Steel Wire/Rope | |||
| Technique | CR/HR | |||
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. | |||
| Steel Grade | 201;301;304;310S;316;321;430;2205;2507;904,etc. | |||
| Tolerance | +/-0.01-1.0% | |||
| Length | Customization | |||
| Thickness | 0.4-30mm / Customized | |||
| Service | OEM, Customized Processing Service | |||
| Processing Type | Cutting,Bending | |||
| Grade | C | Si | Mn | p | S | Ni | Cr | Mo | N |
| 201 | ≤0 .15 | ≤0.8 | ≤1.0 | ≤0.04 | ≤ 0.03 | 17.5-18.5 | 19.5-20.5 | 6.0-6.5 | 0.18-0.20 |
| 904L | ≤0 .02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 | ≤0.1 |
| 654SMO | ≤0 .02 | ≤0 .5 | 2.0-4.0 | ≤0.03 | ≤0.005 | 21.0-23.0 | 24.0-25.0 | 7.0-8.0 | 0.45-0.55 |
| 253MA | 0.05-0.1 | 1.4-2.0 | – | ≤0.045 | ≤ 0.03 | 10.0-12.0 | 20.0-22.0 | – | 0.14-0.20 |
| AL-6XN | ≤0 .02 | ≤1.0 | ≤2.0 | ≤0.04 | ≤ 0.01 | 23.5-25.5 | 20.0-22.0 | 6.0-7.0 | 0.18-0.25 |
| 304 | ≤0 .08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | – | – |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | – | – |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | – | – |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | – | – |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | – |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 16.0 -18.0 | 2.0 -3.0 | – |
| S32760 | ≤ 0 .03 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.015 | 6.0-8.0 | 24.0 -26.0 | 3.0-4.0 | 0.2-0.3 |
| S32750 | ≤ 0 .03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 2.0-3.0 | 0.24-0.32 |
