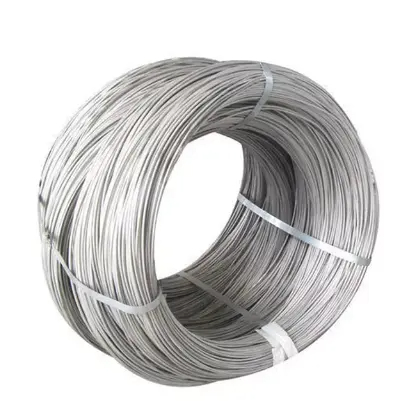

301 Stainless Steel Wire
301 stainless steel wire is an austenitic chromium-nickel stainless steel known for its high strength and excellent corrosion resistance. Renowned for its capacity to undergo substantial hardening through cold working, it offers significant strength and durability. This wire is characterized by good weldability and formability, making it versatile for various applications. Common uses include spring manufacturing, screen mesh fabrication, and in architectural and structural elements requiring both strength and flexibility. Its combination of ductility, durability, and resistance to corrosion makes 301 stainless steel wire a preferred choice in a range of industrial, commercial, and consumer applications.
Description
| Name | Stainless Steel Wire/Rope | |||
| Technique | CR/HR | |||
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. | |||
| Steel Grade | 201;301;304;310S;316;321;430;2205;2507;904,etc. | |||
| Tolerance | +/-0.01-1.0% | |||
| Length | Customization | |||
| Thickness | 0.4-30mm / Customized | |||
| Service | OEM, Customized Processing Service | |||
| Processing Type | Cutting,Bending | |||
| Grade | C | Si | Mn | p | S | Ni | Cr | Mo | N |
| 201 | ≤0 .15 | ≤0.8 | ≤1.0 | ≤0.04 | ≤ 0.03 | 17.5-18.5 | 19.5-20.5 | 6.0-6.5 | 0.18-0.20 |
| 904L | ≤0 .02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 | ≤0.1 |
| 654SMO | ≤0 .02 | ≤0 .5 | 2.0-4.0 | ≤0.03 | ≤0.005 | 21.0-23.0 | 24.0-25.0 | 7.0-8.0 | 0.45-0.55 |
| 253MA | 0.05-0.1 | 1.4-2.0 | – | ≤0.045 | ≤ 0.03 | 10.0-12.0 | 20.0-22.0 | – | 0.14-0.20 |
| AL-6XN | ≤0 .02 | ≤1.0 | ≤2.0 | ≤0.04 | ≤ 0.01 | 23.5-25.5 | 20.0-22.0 | 6.0-7.0 | 0.18-0.25 |
| 304 | ≤0 .08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | – | – |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | – | – |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | – | – |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | – | – |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | – |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 16.0 -18.0 | 2.0 -3.0 | – |
| S32760 | ≤ 0 .03 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.015 | 6.0-8.0 | 24.0 -26.0 | 3.0-4.0 | 0.2-0.3 |
| S32750 | ≤ 0 .03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 2.0-3.0 | 0.24-0.32 |
